$400.00 USD
Shipping calculated at checkout.

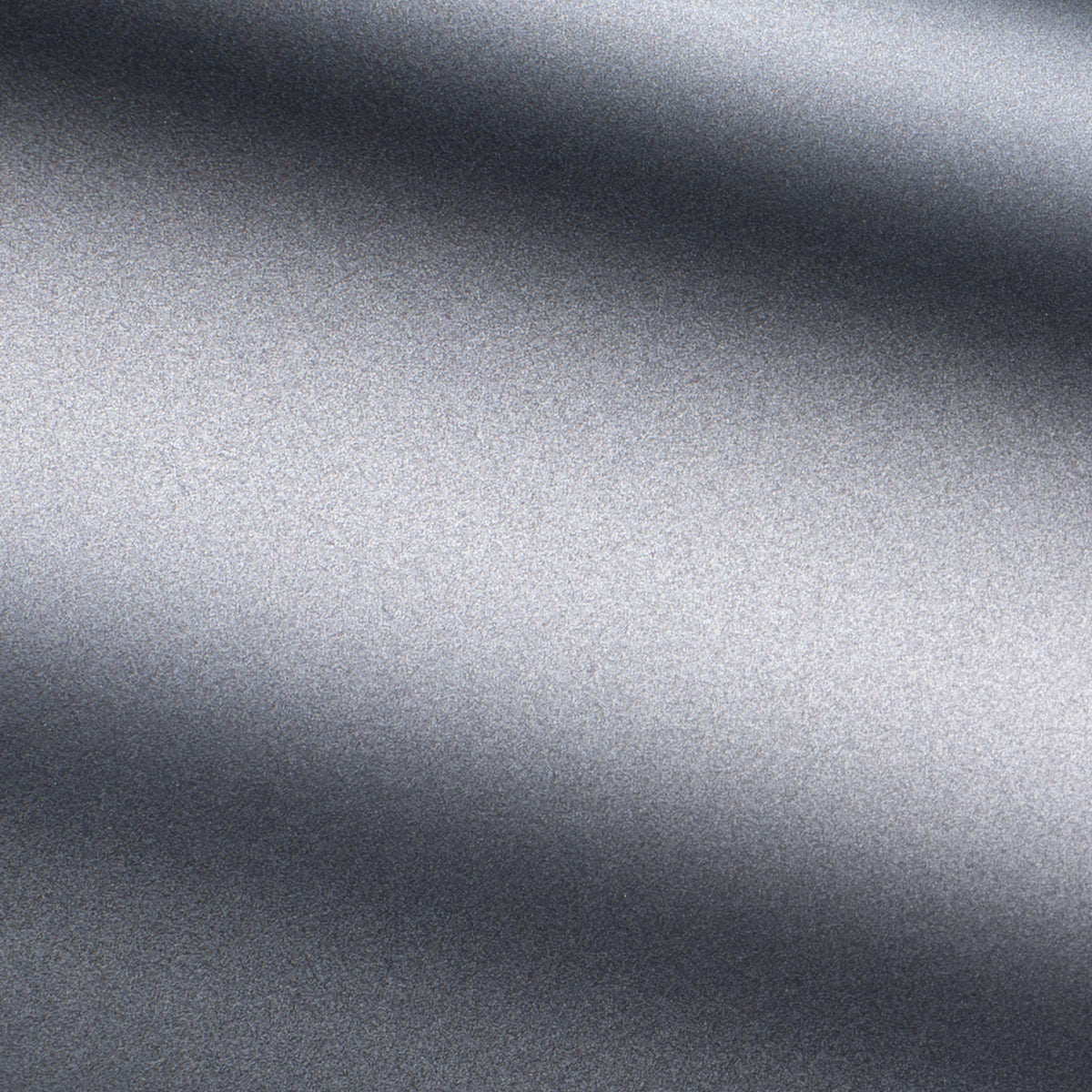

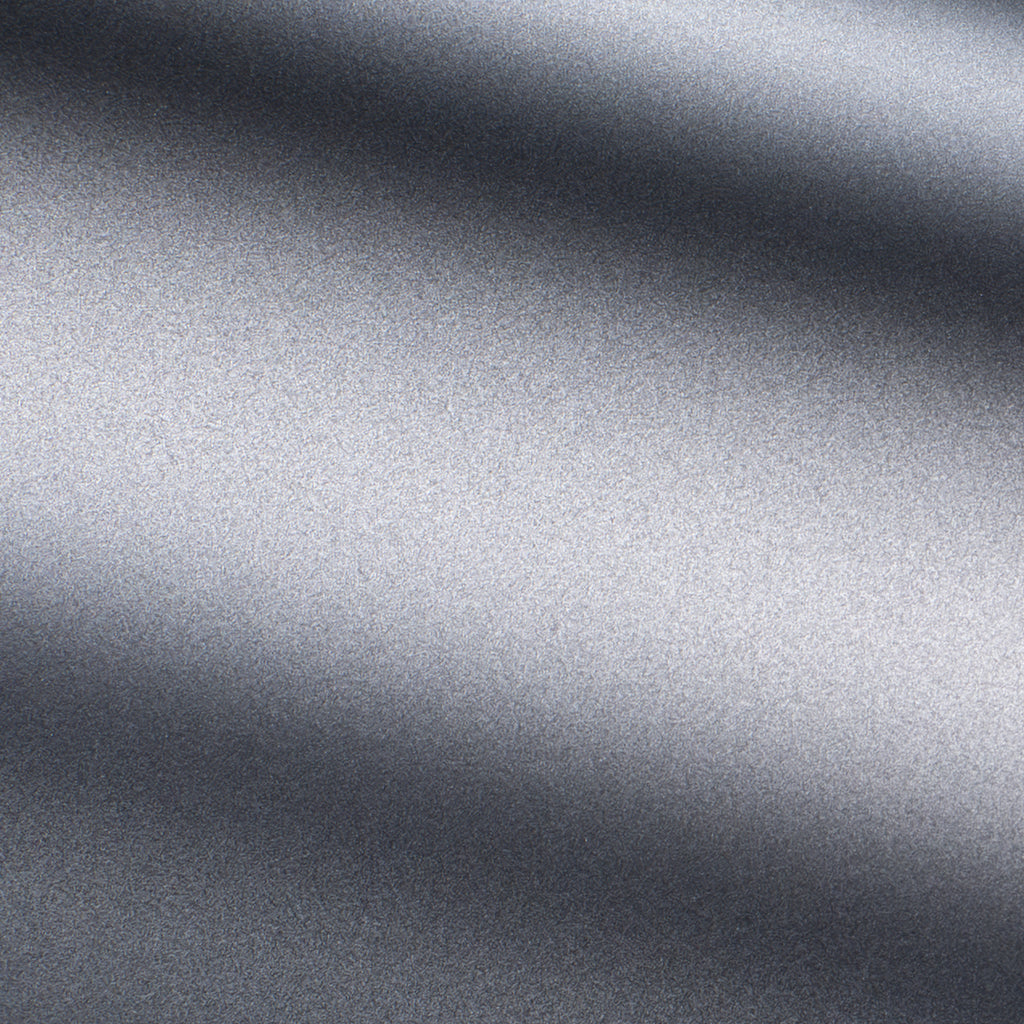

CONERGIES TPU Satin Alpine Grey (SM1107) delivers bold color transformation with premium protection. Built with hydrophilic TPU and an HOC top coating, it provides ultra-high gloss, smooth paint-like finish, and long-term color stability. Dual Grade-8 UV-protected color layers resist fading, while controlled stretch ensures an OEM-clean look on complex curves. A pressure-sensitive acrylic adhesive allows precise installation and lasting adhesion—perfect for drivers who want standout color with durable protection.
Material Characteristics
• Automotive optical grade TPU paint protection film
• Integrated air release structure for smoother application
• Bubble-reducing installation behavior, especially when used with the supplied tack-reducing wet wipes
• Repositionable during installation for precise alignment
• Controlled elasticity allowing up to 60 percent stretch for complex contours
Installation Guidelines
Recommended tools:
Squeegee, buffer pad, knife, masking tape, heat gun, gloves, Conergies TackEase Wet Wipes
PHYSICAL PERFORMANCE INDICATORS
|
Property
|
Specification
|
Standard / Reference
|
|
Gloss
|
≥ 90°
|
GB 8807
|
|
Weight (Finished Product)
|
355–395 g/m²
|
GB/T 4669
|
|
Weight (Adhesive)
|
25–30 g/m²
|
GB/T 4669
|
|
Overall Thickness
|
183.88–208.13 µm
|
GB/T 7125
|
|
Thickness (Removable PET Layer)
|
45–55 µm
|
GB/T 7125
|
|
HOC Top Coating Thickness
|
9.5–10.5 µm
|
GB/T 7125
|
|
Aliphatic TPU Film (> UV90 Protection)
|
57–63 µm
|
GB/T 7125
|
|
Grade 8 UV Protection Top Color Layer
|
16.63–18.38 µm
|
GB/T 7125
|
|
Grade 8 UV Protection Base Color Layer
|
10.5–16.5 µm
|
GB/T 7125
|
|
Aliphatic TPU Base Film
|
57–63 µm
|
GB/T 7125
|
|
Adhesive Thickness
|
33.25–36.75 µm
|
GB/T 7125
|
|
Thickness (PET Liner)
|
75–85 µm
|
GB/T 7125
|
|
Break Elongation (HOC Layer, MD)
|
≥ 60%
|
GB/T 1040.1
|
|
Dimensional Stability (MD)
|
≤ 0.5 mm
|
FTM 14
|
|
Dimensional Stability (CD)
|
≤ 0.4 mm
|
FTM 14
|
|
Peel Force (Finished Product)
|
≤ 0.3 N/25 mm
|
GB/T 2792
|
|
Initial Adhesion
|
≥ 8 N/25 mm
|
FTM 9
|
|
24 h 180° Peel Force
|
≥ 12 N/25 mm
|
GB/T 2792
|
|
Storage Aging Peel Force
|
≥ 10 N/25 mm
|
GB/T 2792
|
|
Application Aging Peel Force
|
≥ 16 N/25 mm
|
GB/T 2792
|
